Homeowners across Houston are turning to the VLX 500 Sliding Window when they want clean sightlines, smooth operation, and a frame that can handle Gulf Coast humidity without warping. It’s a precision-engineered aluminum system built by ViewLux, and Westlight Windows Houston is an authorized installation partner for the product line. That means you get the window itself plus an install team that knows exactly how these frames behave in Houston’s climate, from Meyerland bungalows to Memorial-area new builds. If you’re pricing a window replacement or planning a remodel, call (325) 326-4211 and we’ll walk you through what the VLX 500 costs installed in your part of Houston.

Call (325) 326-4211

Product Overview – VLX 500 Sliding Window

The VLX 500 is a high-performance aluminum sliding system with a slim profile, effortless glide, and your choice of 2-track or 3-track configurations. It’s the kind of window that works just as well in a sharp modern home in the Heights as it does in a traditional brick ranch in Spring Branch, because the frame doesn’t compete with the architecture. It frames the view and gets out of the way.

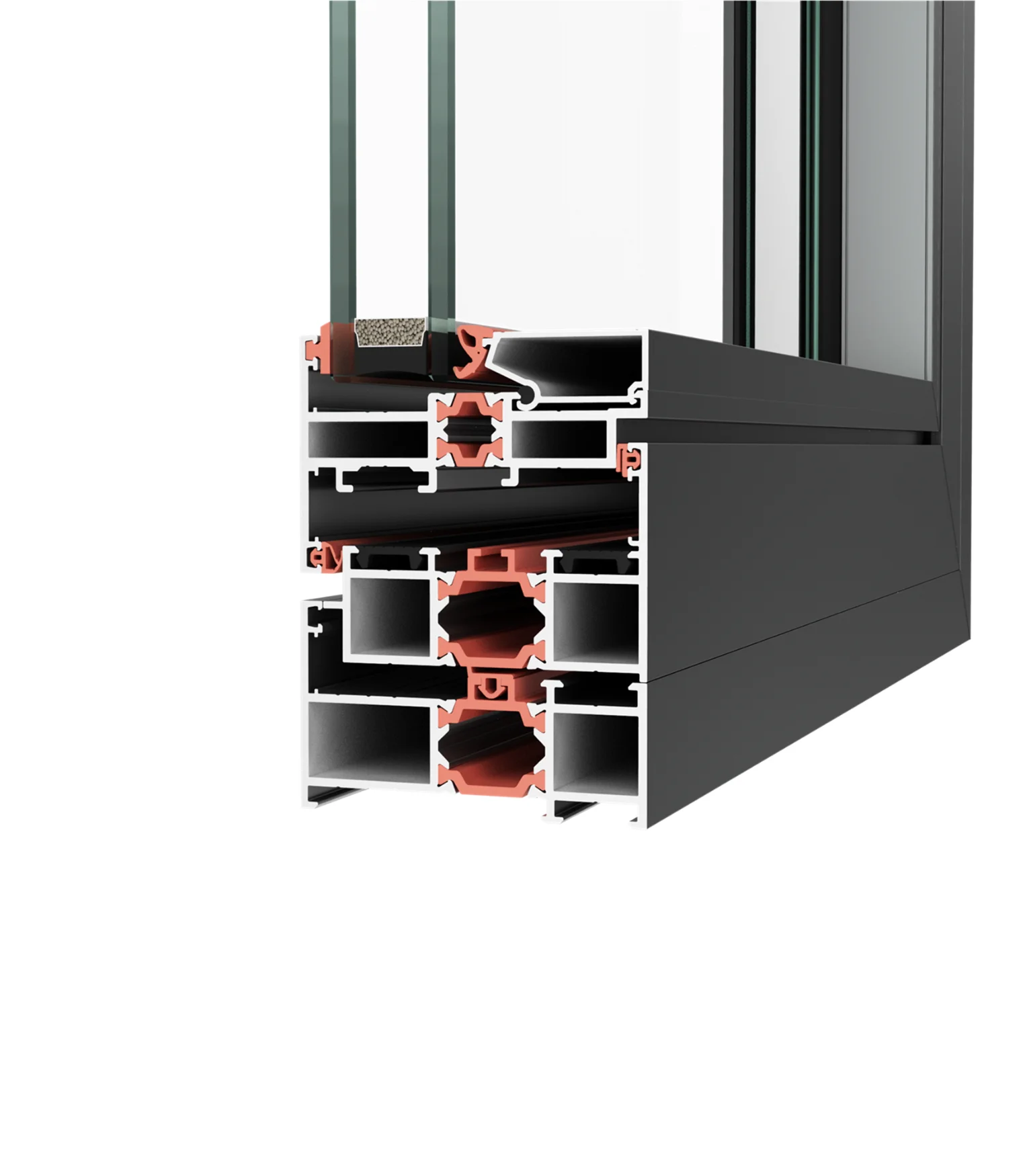

What separates the VLX 500 from standard builder-grade sliders comes down to the aluminum. The profile is engineered at a 1.97-inch width, which keeps the glass area large and the frame presence minimal. The wall thickness comes in at 0.079 inches, meaning the extrusion resists flexing under load and holds its shape for years. That stability matters in Houston, where high summer heat and occasional severe storms punish cheap framing. You’ll notice the glide too. The track system and roller hardware are built to open with two fingers, not two hands, even on wide three-panel openings across a patio or balcony.

Buyers choose this series when they’re done replacing builder windows every decade and want something that looks sharp and stays square. ViewLux engineered it as a mid-to-premium residential slider, and we install it the same way we’d install a $40,000 window package in River Oaks: level, plumb, square, and sealed to the AAMA standard.

Technical Specifications

Here’s the VLX 500 at a glance. We’ve reworded the factory sheet into plain terms so you can compare it against other windows without a spec dictionary.

• Profile width: 1.97 inches, keeping sightlines slim and glass area generous.
• Aluminum wall thickness: 0.079 inches, stiff enough to resist torsion and racking over decades.
• Track configurations: Available as a 2-track or 3-track system depending on how many panels you want to slide.
• Glass options: Clear, frosted, Low-E, tempered, and laminated glass, including impact-rated laminated for storm-prone areas of Houston.
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, and Teak Wood.
• Screen options: Retractable screen or standard sliding screen to match your use and aesthetic.
• Performance standards: Built around thermal break technology with NFRC-rated energy performance, and installed to AAMA 2400/2410 with AAMA 812 foam sealant at every perimeter joint.

Performance Features

Thermal Efficiency. The VLX 500 uses a thermal break in the aluminum frame to interrupt heat transfer between the outside face and the interior. In Houston, that means less radiant heat bleeding through the frame in July and August. NFRC-rated performance data is available on request for your specific glass package.

Acoustic Performance. Aluminum doesn’t insulate sound on its own, but the VLX 500’s tight sealing and laminated glass options do the heavy lifting. If you live near I-10, Beltway 8, or the rail lines through EaDo, laminated glass drops noticeable traffic noise before it enters the room.

Airtightness & Weather Seal. Every perimeter joint gets AAMA 812 low-expansion foam sealant on installation, and the frame’s gasketing seals the sash against air exchange. That cuts drafts during the cold snaps Houston gets each January and keeps humidity exactly where you want it: outside.

Waterproofing. The sliding track has a built-in drainage path, so water that blows against the window drains out instead of pooling. During our installation, we verify drainage function before we call the job done. Houston gets 45-plus inches of rain a year, and leaking sliders are one of the most common callbacks we see from other installers’ work.

Wind Resistance. The VLX 500 is wind-load rated for local climate requirements, and the impact-resistant laminated glass option gives you an extra layer of storm protection. For homes along the Galveston Bay corridor or in Fort Bend County, that laminated option is worth serious consideration.

Security & Hardware. The roller hardware and locking mechanism are engineered to keep the sash firmly seated in the track when closed. A well-seated sash is harder to pry, and the aluminum frame resists the kind of warping that leaves gaps on older vinyl sliders around Houston.

Color & Glass Options

The VLX 500 comes in six finishes, and we’ve seen every one of them installed somewhere in Houston. Premium Black reads modern and crisp on white stucco or brick, especially in new construction around Montrose and Sawyer Yards. Pure White and Anodized Silver lean traditional or coastal and fit ranch homes in Oak Forest and Westbury without making the window the loudest thing on the wall. Bronze and Champagne are warmer metals that pair well with natural stone and older traditional elevations in Memorial and Tanglewood. Teak Wood is a wood-grain finish for people who want the texture of wood with none of the maintenance in Houston’s humidity.

For glass, clear and Low-E are the workhorses. Low-E is what we recommend for any window that catches direct afternoon sun, and in Houston that’s most of them. Frosted works well for bathrooms and any ground-floor window facing a side yard or neighbor. Tempered is code-required in certain locations, and we verify those requirements during measurement. Laminated glass adds impact resistance and real noise reduction, which makes it the right call for busy streets and storm-conscious homeowners.

Installation by Westlight Windows Houston in Houston

Here’s the thing about aluminum window systems: the window is only as good as the installation. We’ve torn out name-brand windows that failed five years in, not because the window was bad but because the original installer didn’t square the frame, didn’t shim correctly, or skipped the perimeter seal. Once the frame is racked or water gets behind the flange, no warranty conversation brings it back.

Our installation process starts with a pre-install inspection of the rough opening in your Houston home. We check the opening dimensions, the condition of the framing, and any existing water damage before we order the window. If there’s rot around a west-facing wall that’s been taking driving rain for 20 years, we fix it before the new window goes in.

On install day, we set every VLX 500 unit level, plumb, and square, shimming as needed so the frame doesn’t twist when the screws pull tight. We seal the perimeter with AAMA 812 low-expansion foam sealant at every joint, following AAMA 2400/2410 installation standards. Then we run a water test on the installation, install the sash and screens, and clean the site before we leave. You’ll get a final walkthrough so you know how the locking hardware works and what to expect from maintenance.

Houston’s hot, humid climate and our code requirements mean you don’t want a handyman installing a window with this level of engineering. Improper installation voids the ViewLux manufacturer warranty, and you don’t want to find that out after a storm blows through. Westlight Windows Houston is an authorized ViewLux installation partner, which means the warranty stays intact when we install it.

Frequently Asked Questions – VLX 500 Sliding Window

What is the lead time for the VLX 500 Sliding Window? Most VLX 500 orders arrive within 3 to 5 weeks from confirmation of the final measurements and finish selection, though custom glass packages like laminated or impact-rated glazing can extend the timeline. Call (325) 326-4211 and we’ll confirm current lead times for your exact configuration before you commit.

Does the VLX 500 qualify for energy tax credits? It can, depending on the glass package you choose and the current federal program rules. The Low-E glass option is the key to meeting energy performance thresholds for credits in Houston’s climate zone. We’ll provide the NFRC ratings documentation you need for your tax preparer when you order Low-E glass.

What warranty comes with the VLX 500 Sliding Window? The VLX 500 carries ViewLux’s manufacturer warranty on the frame and hardware, and that warranty remains valid only when the window is installed by an authorized partner like Westlight Windows Houston. Installation-related workmanship is covered separately through us. Call (325) 326-4211 for written details on both.

Can I customize the size of the VLX 500? Yes. The VLX 500 is a made-to-measure system, so you’re not locked into stock sizes. We take exact field measurements at your Houston home before ordering, which matters because rough openings rarely match the original plans. Custom sizing is one of the main reasons homeowners choose this window.

How do I maintain aluminum frames on the VLX 500? Wipe the frames and tracks down two or three times a year with mild soap and water, keep the track drainage slots clear of debris, and lubricate the rollers annually. That’s it. The powder-coated aluminum finish won’t rot, warp, or need repainting like wood or some vinyl systems used on Houston homes.

Get a Quote – VLX 500 Sliding Window in Houston

If you’re ready to price the VLX 500 for your home, we’ll schedule a free on-site measurement, confirm your exact sizes and glass needs, and give you a written line-item quote with no surprises later. Call Westlight Windows Houston at (325) 326-4211 to start the process or to ask anything about the window.

Written by the team at Westlight Windows Houston, authorized ViewLux installation partner serving Houston and surrounding communities.
