VLX 100 Pivot Door in Houston, TX | Westlight Windows Houston

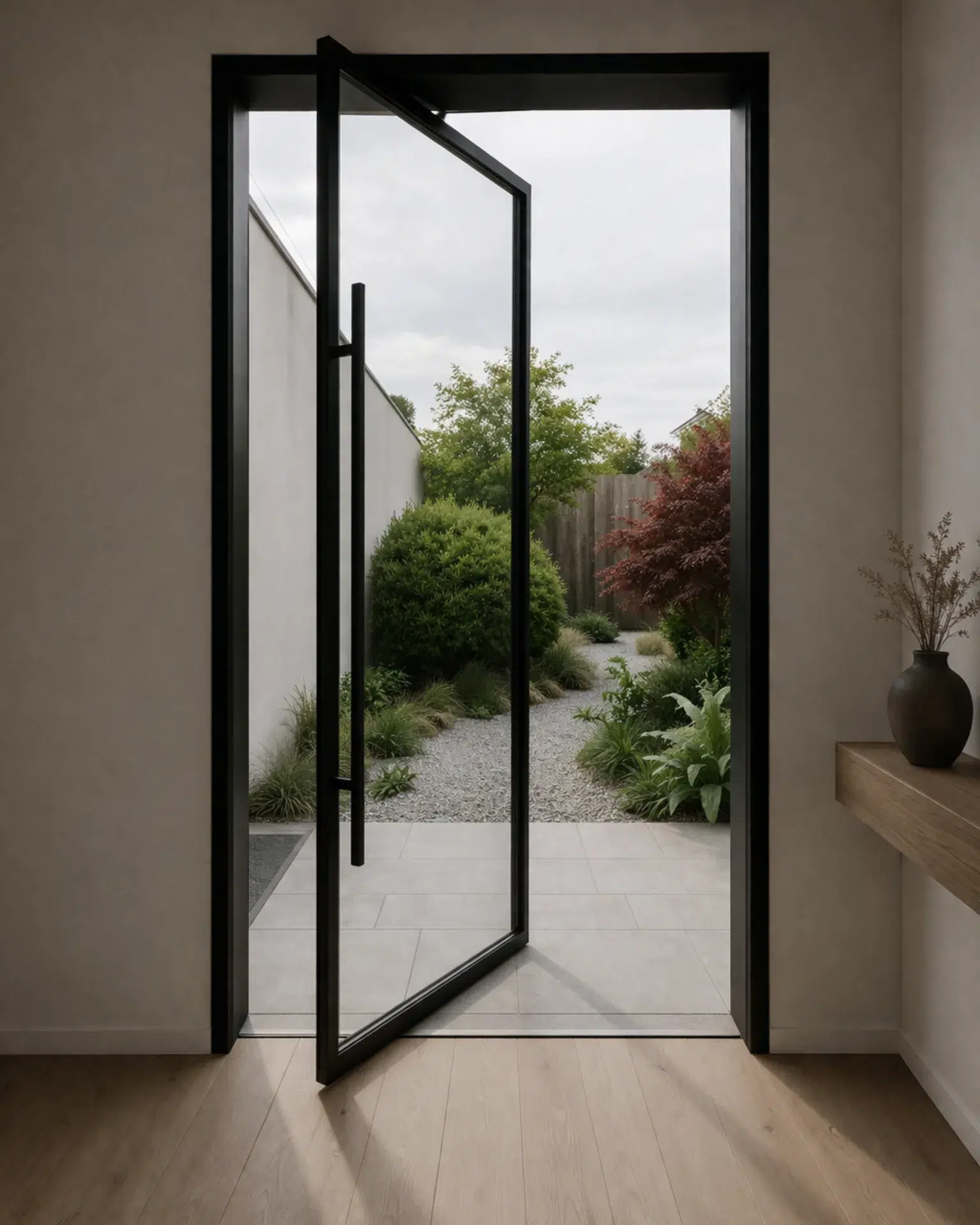

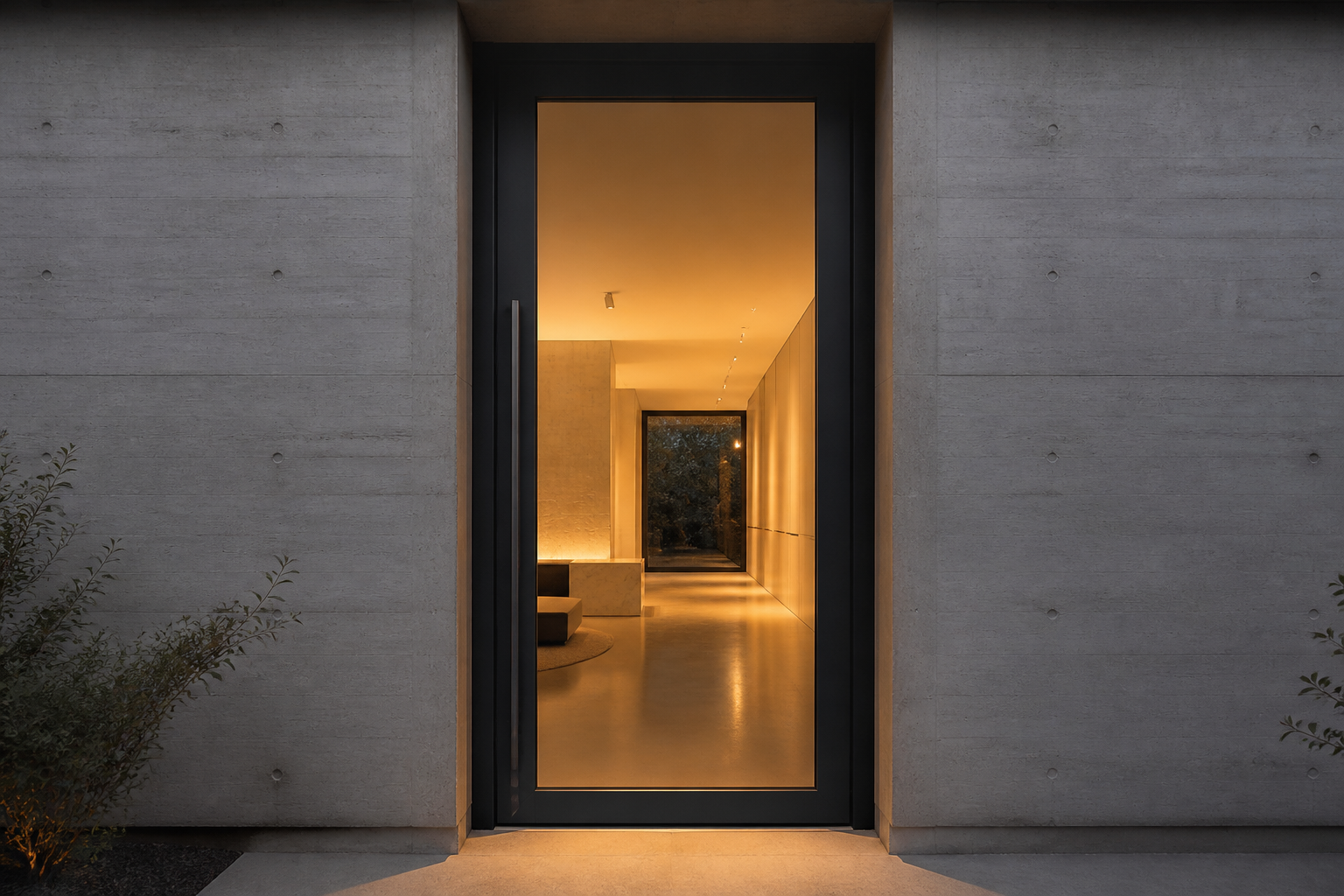

The VLX 100 Pivot Door is a full-height aluminum entry system that rotates on a vertical center axis instead of traditional side hinges. It’s built for homeowners in Houston who want a true architectural focal point: oversized glass, clean sightlines, and a door that feels substantial every time you open it. We install this door as an authorized ViewLux partner, meaning we have direct access to the product line, factory support, and the training required to set a 120-inch-tall pivot door dead level and plumb. Call (325) 326-4211 to talk through sizing, glass, and finish options for your project.
Product Overview – VLX 100 Pivot Door
The VLX 100 is the pivot door you spec when a standard hinged door won’t carry the room. Because the pivot point sits off-center, the door can span wider and taller than a conventional swing door without sagging or dragging. In Houston, we see this door most often in modern builds inside the Loop, Mid-Century remodels in Meyerland, and custom homes in The Woodlands where the entry is meant to feel like a gallery piece. The frame is heavy-duty extruded aluminum with a profile width of 2.56 inches and a wall thickness of 0.098 inches. That’s a noticeably beefier extrusion than standard residential door frames, and it reads as such. The oversized glass panel is the visual centerpiece, whether you go with clear glass for an unobstructed view or frosted for privacy at the front of the house. The engineering underneath is quiet: thermal breaks in the frame, a reinforced pivot hinge assembly rated for daily use, and perimeter weather sealing designed to handle Houston’s humidity cycles without warping or swelling. Buyers choose the VLX 100 because it makes a statement without shouting. It’s one clean aluminum frame, one large piece of glass, and a pivot motion that feels deliberate.
Technical Specifications
Here are the core numbers for the VLX 100 Pivot Door. Wall thickness is 0.098 inches, profile width is 2.56 inches, and the maximum panel span runs up to 60 inches wide by 120 inches tall. That means it can cover openings that would require double doors with a traditional setup.
- Frame material: Heavy-duty extruded aluminum, 6063-T5 alloy
- Wall thickness: 0.098″
- Profile width: 2.56″
- Maximum panel size: 60″ wide × 120″ tall
- Pivot system: Top and bottom pivot hinges, floor-mounted bottom pivot
- Glass options: Clear, Frosted, Obscure, Low-E, Tempered, Laminated
- Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood
- Performance compliance: AAMA 2400/2410 installation standard, NFRC-rated thermal break technology
Every VLX 100 we order is built to the opening dimensions we measure on-site. There are no off-the-shelf sizes, which is exactly what you want for a pivot door: the pivot point, swing radius, and floor clearance all depend on precise math.
How Much Does a VLX 100 Pivot Door Cost in Houston?
A VLX 100 Pivot Door installed in Houston typically runs between $8,500 and $16,000, depending on panel size, glass selection, and finish. A 36-inch by 96-inch unit with clear tempered glass and a black finish sits at the lower end. A full 60-by-120-inch panel with Low-E laminated glass and a custom champagne finish lands at the top. Here’s how the pricing breaks down:
| Component | Typical Range (Houston) |
|---|---|
| Base VLX 100 frame and panel (standard size) | $4,800 – $7,200 |
| Glass upgrade (Low-E, laminated, or oversized) | $900 – $2,800 |
| Custom finish (Champagne, Teak Wood, Bronze) | $400 – $1,100 |
| Pivot hardware and reinforced floor anchor | $700 – $1,500 |
| Professional installation by Westlight Windows Houston | $1,400 – $2,900 |
| Permits and inspection support (Houston city limits) | $200 – $600 |
These numbers reflect what we quote on a weekly basis across Houston, from Katy to Clear Lake. Every project gets a written line-item quote before work starts, so there are no surprises. Call (325) 326-4211 for an exact number on your door.
Performance Features
Thermal Efficiency – The VLX 100 frame includes a thermal break that separates interior and exterior aluminum surfaces, reducing heat transfer through the frame. NFRC-rated energy performance means this door contributes to your home’s cooling load calculations, which matters in Houston summers. Low-E glass adds another layer of heat rejection.
Acoustic Performance – A heavier extrusion and tight perimeter seal reduce outside noise. We recommend laminated glass for homes near I-10, 610, or Hobby Airport flight paths. Laminated glass cuts mid-frequency noise significantly more than standard tempered.
Airtightness & Weather Seal – The VLX 100 uses compression gaskets around the full perimeter. Paired with AAMA 812 low-expansion foam sealant at every joint during installation, the assembly resists air infiltration. That means less humidity seeping in from Houston’s Gulf Coast air.
Waterproofing – The sill design and floor pivot housing are engineered to shed water outward. We add our own step: after install, every door gets a direct water test along the bottom track and pivot housing. If water pools anywhere it shouldn’t, we re-seal before we leave.
Wind Resistance – Houston sits in a hurricane-prone zone, and the VLX 100 is wind-load rated for local code requirements. The 0.098-inch wall thickness and aluminum extrusion hold glass firmly under pressure. For coastal properties in Galveston or Seabrook, impact-resistant laminated glass is the right choice.
Security & Hardware – The pivot hinge system is floor-anchored and top-guided, making it hard to pry. Multi-point locking hardware is available, and tempered or laminated glass options meet safety glazing standards for doors.
Color & Glass Options
Premium Black is our most ordered finish in Houston. It works with modern white stucco, brick, and the black-window trend across Montrose and the Heights. Pure White suits traditional homes and French-inspired builds in Memorial and River Oaks. Anodized Silver gives a raw, industrial look that pairs well with concrete and steel. Bronze is the quiet choice for Mid-Century homes; it reads warm without being loud. Champagne has a soft metallic glow that sits beautifully against warm wood and limestone. Teak Wood is a wood-grain aluminum finish that mimics natural teak without the maintenance.
On the glass side: Clear maximizes the view. Frosted keeps light flowing while blocking direct sightlines, ideal for front entries. Obscure offers more texture and visual interest. Low-E reflects solar heat. Tempered meets safety code for door glass. Laminated adds impact resistance and acoustic dampening, and it’s our top recommendation for Houston’s storm season and street-facing entries.
Installation by Westlight Windows Houston in Houston
Here’s what a proper VLX 100 Pivot Door installation looks like. We start with a pre-install inspection of the rough opening: width, height, squareness of the framing, and floor level. Pivot doors are unforgiving. If the floor slab is off by an eighth of an inch over eight feet, the door will bind. In Houston, slab settlement is common, especially in older neighborhoods like Garden Oaks and Timbergrove, so we address floor conditions before the frame ever goes in.
During installation, we set the frame level, plumb, and square using shims at every anchor point. We seal the full perimeter with AAMA 812 low-expansion foam, which is formulated for aluminum fenestration and won’t bow the frame as it cures. The entire installation follows AAMA 2400/2410 guidelines, the industry standard for window and door installation. Then we mount the pivot hardware, hang the panel, and adjust the top guide and floor pivot until the swing is smooth and the door stops exactly where you want it. We finish with a water test and walkthrough so we can check the door with you standing there.
This matters because the manufacturer warranty on the VLX 100 assumes competent installation. An improperly set pivot door voids hardware coverage and leads to sagging panels and floor damage. We’re the authorized ViewLux installation partner in Houston, which means our installs are approved by the factory and covered the way they’re supposed to be.
Frequently Asked Questions – VLX 100 Pivot Door
Lead time for a VLX 100 in the Houston market is typically 6 to 10 weeks from order to delivery, depending on glass selection and finish. Custom sizes and premium finishes like Champagne or Teak Wood can extend that to 12 weeks. Custom sizes and premium finishes can extend that. If you’re building or renovating on a schedule, call (325) 326-4211 early so we can lock in your production slot before framing wraps.
Yes, in most cases. Because the VLX 100 is NFRC-rated with thermal break technology and Low-E glass options, it often qualifies for federal energy efficiency tax credits. The exact credit depends on the glass package and the home’s location. We’ll provide the performance documentation you need when we quote your project.
The VLX 100 carries a manufacturer warranty on the aluminum frame, glass seal, and pivot hardware. The frame finish has a separate limited warranty. The key detail is that the warranty is only valid when installation follows AAMA standards and factory guidelines, which is the standard Westlight Windows Houston works to on every job in Houston.
Yes. The VLX 100 is built to order, not stocked in standard sizes, so your opening determines the panel dimensions up to the 60-inch by 120-inch maximum. We measure on-site in Houston, confirm the swing radius and floor clearance, and submit exact specs to ViewLux. Call (325) 326-4211 and we’ll schedule a free measurement.
Clean the frame and glass with mild soap and water every few months, and rinse thoroughly to remove salt and humidity residue. In coastal areas like Clear Lake and League City, increase that to monthly. Inspect the pivot hardware annually and keep the floor pivot free of dust. We offer maintenance checks for Houston clients who want us to handle it.
Get a Quote – VLX 100 Pivot Door in Houston
You know the door. You know the finish and glass. The next step is a real quote with a measured opening and a fixed price. Call Westlight Windows Houston at (325) 326-4211 to schedule a free on-site measurement and get a written, line-item quote for your VLX 100 Pivot Door. We serve all of Houston and the surrounding communities.
Written by the team at Westlight Windows Houston, authorized ViewLux installation partner serving Houston, TX.
