VLX 80 Fixed / Picture Window

VLX 80 Fixed / Picture Window in Houston, TX | Westlight Windows Houston

The VLX 80 Fixed / Picture Window is a fixed-frame aluminum window built for one job: putting as much glass between you and the outside as physically possible. No sashes, no hinges, no operating hardware. Just a 1.97-inch profile holding up to 120 inches of uninterrupted glass. Houston homeowners choose it for living rooms facing the backyard, second-story hallways that need light, and any wall where the view is the point. Westlight Windows Houston is an authorized ViewLux installation partner in the Houston area, which means you get the product as the manufacturer intended it installed. Call (325) 326-4211 to talk through sizing and pricing for your home.

Call (325) 326-4211

Product Overview – VLX 80 Fixed / Picture Window

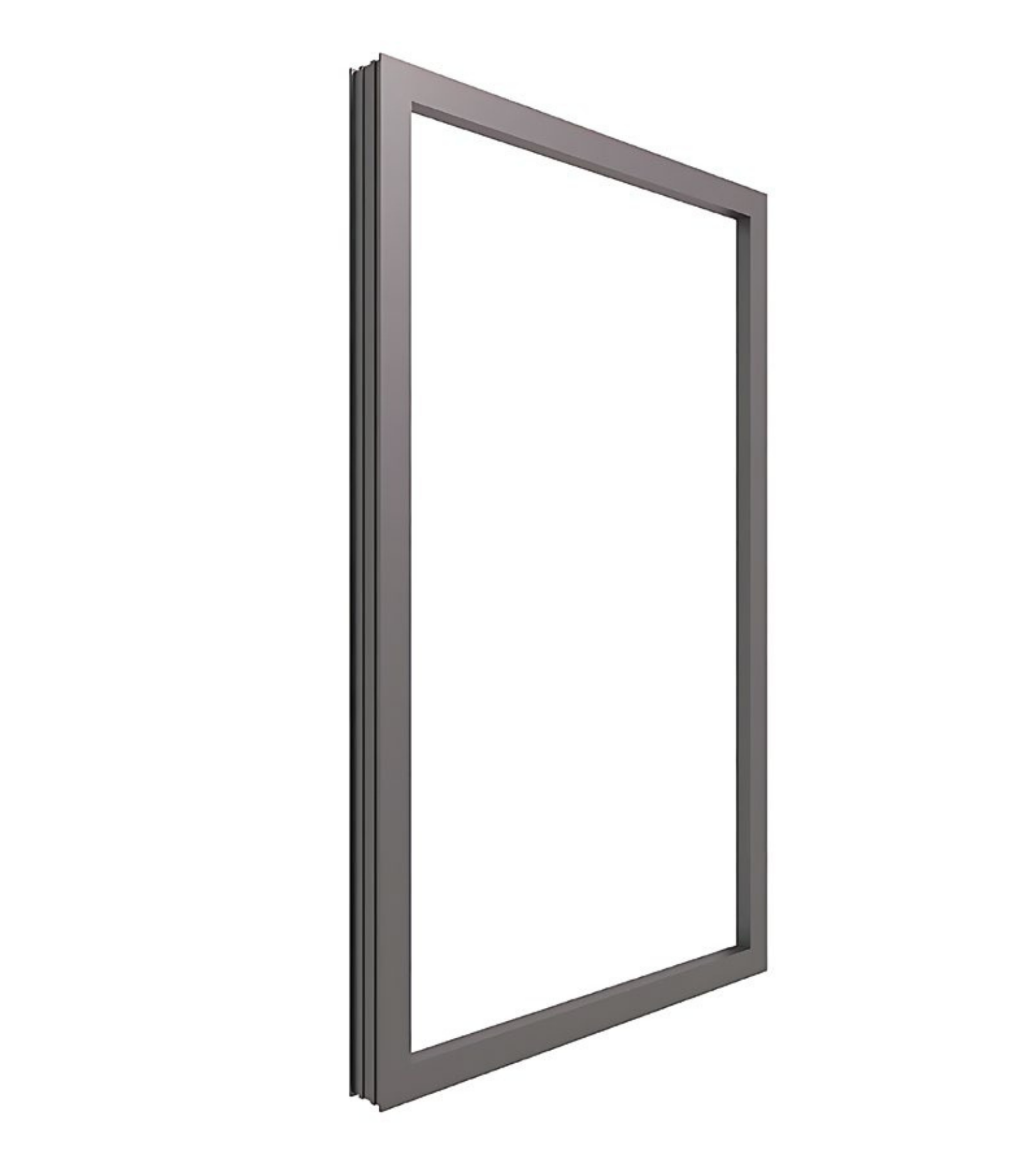

The VLX 80 is what we call a maximally glazed window. That phrase sounds technical, but it’s simple: the frame gets out of the way. The profile is 1.97 inches wide. For context, many standard aluminum window frames sit at 3 to 4 inches. Thinner profiles mean more glass surface per opening. On a wall of four or five VLX 80s arranged side by side, you get a nearly continuous glass plane. That’s why architects and designers in Houston spec it for modern builds and renovations where the window is meant to disappear.

Because it’s a fixed window, the VLX 80 doesn’t open. That’s not a limitation for many of our clients. It’s the reason the window can span up to 120 inches wide without visible hardware breaking the sightline. Fixed windows seal tighter than operable ones, too. No sashes, no weatherstripping gaps, no rollers that wear out. The wall thickness on the frame is 0.079 inches, which gives the extrusion real structural integrity without adding bulk. The aluminum is extruded and finished at the factory with a coating system designed to hold up under the Houston sun. We’ve seen cheap powder coats fade and chalk within five years here. The finishes on the VLX 80 are a different class of coating.

Clients pick this series for a few reasons. For some, it’s the clean look. For others, it’s the engineering: they want a window that won’t bow or warp after a decade of Gulf Coast humidity. And for many, it’s the simplicity. A fixed window is the lowest-maintenance window you can put in a house. Nothing to operate, nothing to break, nothing to forget to lock.

Technical Specifications

If you’re comparing the VLX 80 against other fixed or picture windows, here are the numbers that matter, in plain terms instead of catalog language.

• Wall thickness: 0.079 inches. This is the gauge of the extruded aluminum itself. Thicker than many entry-level aluminum frames, which tend to run thinner and flex more during transport and installation.
• Profile width: 1.97 inches. The visible frame width around the glass. Slim enough to keep the focus on the view, wide enough to hold the glazing securely.
• Maximum span: up to 120 inches wide. Not every wall can take a ten-foot fixed window, but the extrusion is rated for it. We’ll confirm with ViewLux engineering on spans that push the limit.
• Glass options: Clear, Frosted, Low-E, Tempered, Laminated, Gray Tint, Black Tint. Each serves a different purpose depending on the room and exposure.
• Finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood. Factory applied and cured. All six are suitable for exterior use in hot, humid climates.

Performance Features

Thermal Efficiency – The VLX 80 uses a thermal break in the aluminum frame. Aluminum conducts heat fast, but the break interrupts that transfer, which is what makes the window NFRC-rated for energy performance. In Houston’s summers, that matters every day. With Low-E glass, the VLX 80 rejects a meaningful share of solar heat gain without darkening the room.

Acoustic Performance – Fixed windows outperform operable windows on noise reduction because there’s no air gap around a moving sash. The VLX 80 seals glass to frame tightly, and when you combine that with laminated glass, you get real sound control. Homes near 610, I-10, Bush Intercontinental, or the train lines through the Heights notice the difference most.

Airtightness & Weather Seal – A fixed window with factory-set glazing and a properly sealed perimeter doesn’t leak air. The VLX 80’s design purpose is airtight by nature. We install every unit to AAMA 2400/2410 standards, which govern proper window installation practices, and use AAMA 812 compliant low-expansion foam sealant on every perimeter joint.

Waterproofing – Houston gets roughly 50 inches of rain a year, often in violent bursts. The VLX 80 is built to keep water out, and our installation is designed to move water away from the frame. We flash and seal every opening so that even wind-driven rain runs down and away, not in.

Wind Resistance – The extrusion’s structural rigidity plus the fixed design means the VLX 80 is wind-load rated for local climate requirements. During spring storm season and the occasional tropical system, a properly installed fixed window is one of the most wind-resistant openings in your house.

Security & Hardware – There is no hardware on the VLX 80. No locks to force, no tracks to pry. A fixed frame with laminated glass is a meaningful deterrent. Our clients sometimes choose laminated glass for street-facing or first-floor applications specifically for break-resistance and sound damping.

Color & Glass Options

The six finish options cover most design directions we see in Houston. Premium Black is the current favorite for contemporary exteriors. It frames glass sharply and works with white brick, stucco, and black or bronze accent hardware. Pure White suits traditional suburban homes and pairs well with bright interiors. Anodized Silver is the classic aluminum look, cooler in tone, and especially good for a mid-century or minimalist facade. Bronze reads darker and warmer than black, popular in neighborhoods like Memorial and West University where earthy exteriors are common. Champagne is a lighter warm metal that bridges modern and traditional. Teak Wood is a wood-look finish that gives you a warm timber appearance without the maintenance of real wood, which matters in Houston’s humidity.

On glass, the choice depends on where the window faces. Clear maximizes visible light. Low-E is our default recommendation for any window getting afternoon sun because it cuts heat gain without a visible tint. Gray Tint and Black Tint reduce glare and heat while adding a moodier look from the outside. Frosted gives privacy for bathrooms or side-yard windows. Tempered is what code requires in some locations like next to doors. Laminated adds impact resistance and sound reduction. Many clients combine options, like Low-E laminated, to get energy performance plus storm protection.

Installation by Westlight Windows Houston in Houston

The best window on the market performs only as well as its installation. That’s a statement we stand behind every week in the Houston area. We’ve opened up walls to replace windows that were fine products, installed badly: units out of square, foam gaps, no flashing, sealant that failed in two summers. None of that is warranty-covered by any manufacturer. Improper installation voids the warranty. That’s why we handle the VLX 80 from first measurement to final inspection.

Our process starts with a pre-installation inspection of the existing opening. We check the rough opening dimensions, the condition of the framing behind the trim, and any signs of existing water intrusion. If the framing is compromised, we address it before the window goes in. Then we set the unit level, plumb, and square. Fixed windows especially need to be set perfectly square. A small error shows as a visibly off glass line on a large picture window.

We seal every perimeter joint with AAMA 812 compliant low-expansion foam. Low-expansion is not a preference; it’s the correct material for aluminum-framed windows. Higher-expansion foams can bow the frame. Then we flash and seal the exterior to AAMA 2400/2410 standards, which is the recognized installation standard for windows and doors. Finally, we run a water test on the opening before replacing the trim and finish work. Cleanup is part of the job. You don’t vacuum our dust.

Houston-specific factors matter too. We flash differently on the east and southeast sides of houses because those get the worst wind-driven rain. We account for brick and stone exterior veneers, which move differently than wood or stucco. And we make sure the home’s drainage plane is maintained. A window that looks sealed but traps water behind the brick is a mold problem waiting to happen. That’s the kind of thing you get by hiring a Houston installer who does this daily, not whoever the big-box store subs the job to.

Frequently Asked Questions – VLX 80 Fixed / Picture Window

What is the lead time for the VLX 80 Fixed / Picture Window? The VLX 80 is built to order, and lead time typically runs 3 to 6 weeks depending on glass and finish combinations plus current factory scheduling. Custom sizes and laminated glass can push lead time toward the longer end. We’ll give you a written timeline when you order, and we keep you updated if anything at the plant shifts. Call (325) 326-4211 with your rough dimensions and we can give you a real estimate.

Does the VLX 80 qualify for energy tax credits? Whether the VLX 80 qualifies depends on the glass package you select, your home’s location, and the current federal and local program rules. Low-E glass options are generally the right starting point for energy-qualifying windows. We can’t promise a credit without reviewing your specific configuration, but we’ll point you toward the qualifying combinations when we quote you. Ask about it during your free estimate.

What warranty comes with the Fixed / Picture Window? The manufacturer provides a warranty on the frame, finish, and glass package. What matters for you is that the warranty is only honored if the window is installed correctly. Westlight Windows Houston is an authorized ViewLux installation partner, and we install every VLX 80 to the manufacturer’s required standards, which keeps your warranty intact. We’ll review the specific coverage with you before you order.

Can I customize the size of the VLX 80? Yes, within the extrusion’s structural limits. The maximum span is up to 120 inches wide, but your specific maximum depends on glass type, wind load requirements for your part of Houston, and the opening itself. Tall and wide configurations may require engineering review. We take precise measurements, check the structural limits with the manufacturer, and order the largest size that’s safely supportable. That’s the right way to do it.

How do I maintain aluminum frames on fixed windows? Aluminum frames need almost no maintenance in Houston beyond an occasional cleaning of the frame and track-free glass edges with mild soap and water. We recommend checking the exterior sealant lines once a year, especially after storm season, and keeping the weep paths at the bottom of the frame clear. Don’t pressure-wash directly at the frame joints. If you ever notice a sealant line cracking or shrinking, call us. A $50 sealant refresh beats a water damage claim.

Get a Quote – VLX 80 Fixed / Picture Window in Houston

If you’re planning a Houston home with serious glass, the VLX 80 deserves a close look. We’ll measure your openings, walk through glass and finish options, and give you a written quote with no change orders after the fact. Call (325) 326-4211 or reach out through our website to schedule a free on-site measurement. Bring us your wall, and we’ll show you what the VLX 80 can do with it.

Written by the team at Westlight Windows Houston, authorized ViewLux installation partner serving Houston, TX.
